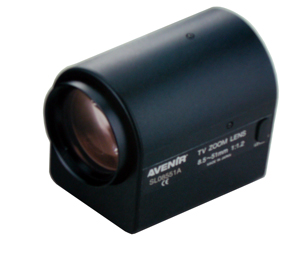

SL08585
| Model No | SL08585AIR | SL08585PIR | SL08585MIR | ||
| Image Format Cover | 1/2" ～ 1/3" | ||||
| 焦點距離 | 8.5 ～ 85 mm | ||||
| Zoom Ratio 倍數 | 10 倍 | ||||
| MAX光圈比率 | 1 : F1.5 | ||||
| Iris光圈 | 操作 | 視頻驅動 | 電機拉動 | ||
| Iris Range | F1.5 ～ 360 | F1.5 ～CLOSE or 360 | |||
| 速度 | 2 S | ||||
| 輸入電壓 | DC 8 ～ 16V Max. 30mA | DC 12V Max. 50mA | |||
| 靈敏度調整 | 0.5 ～ 1.0VP-P | * * * | |||
| Focus 焦點 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 5 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| ZOOM 變焦 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 5 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| Angle Field of View (D×H×V) |
1/3 inch | Wide | 39.0° × 31.3° × 23.5° | ||
| Tele | 4.08° × 3.28° × 2.47° | ||||
| 1/2 inch | Wide | 51.6° × 41.5° × 31.3° | |||
| Tele | 5.38° × 4.34° × 3.28° | ||||
| 2/3 inch | Wide | * * * | |||
| Tele | * * * | ||||
| 1 inch | Wide | * * * | |||
| Tele | * * * | ||||
| Minimum Object Distance | 1.5 m | ||||
| Back Focal Length | 14.65 mm | ||||
| Effective Diameter | Front | φ48.5 mm | |||
| Rear | φ14 mm | ||||
| Filter Screw size | M62.0 P=0.75 | ||||
| Mount / Flange Back | C / 17.526mm | ||||
| Mechanical Dimension (W×H×L) | 75.5mm × 66.0mm × 134.8mm | ||||
| Weight | 660g | 690g | 640g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
